Site Plan & Figure Ground Plan of Budweis for download as PDF, DXF Plan, 1:100 000

Budweis

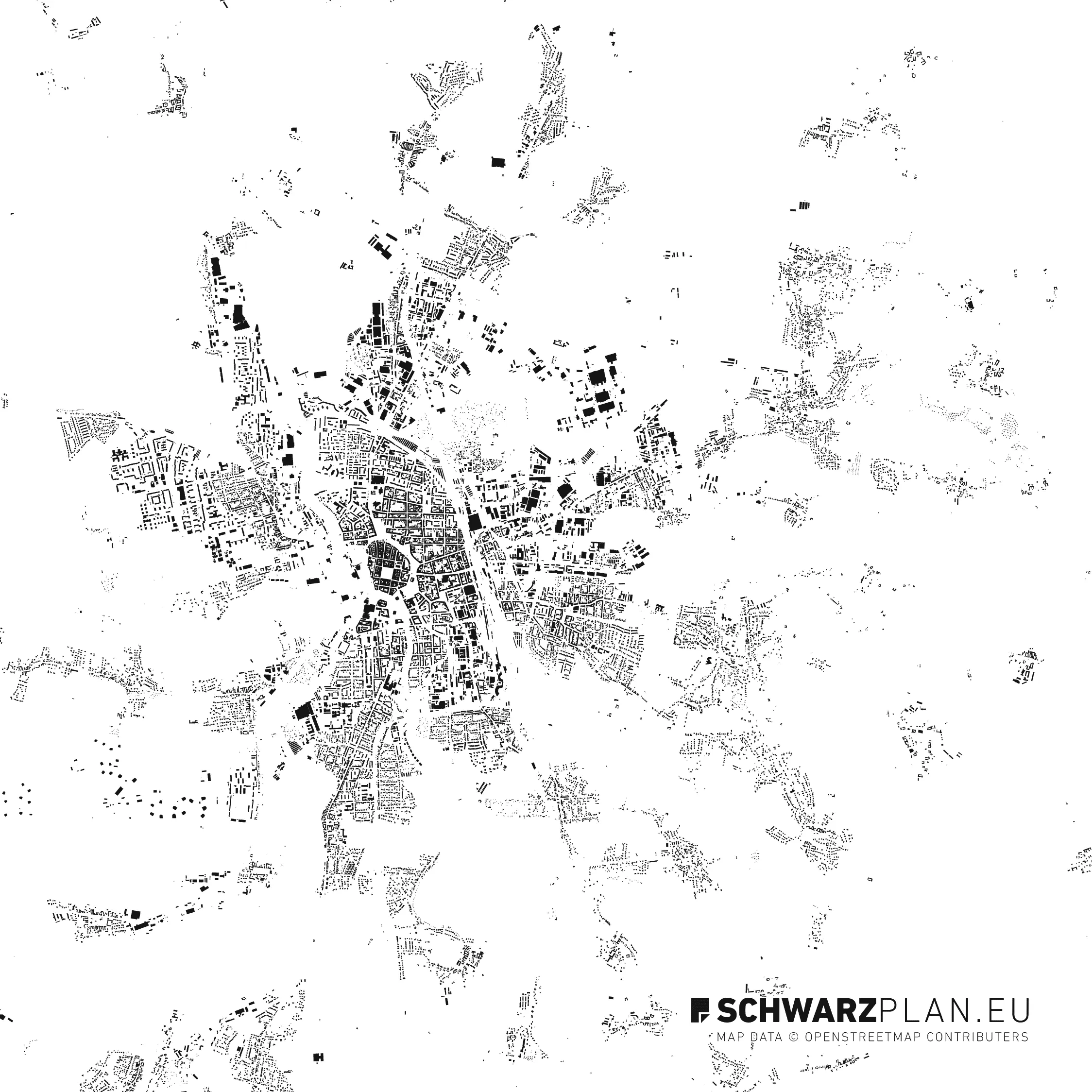

Figure Ground Plan of Budweis

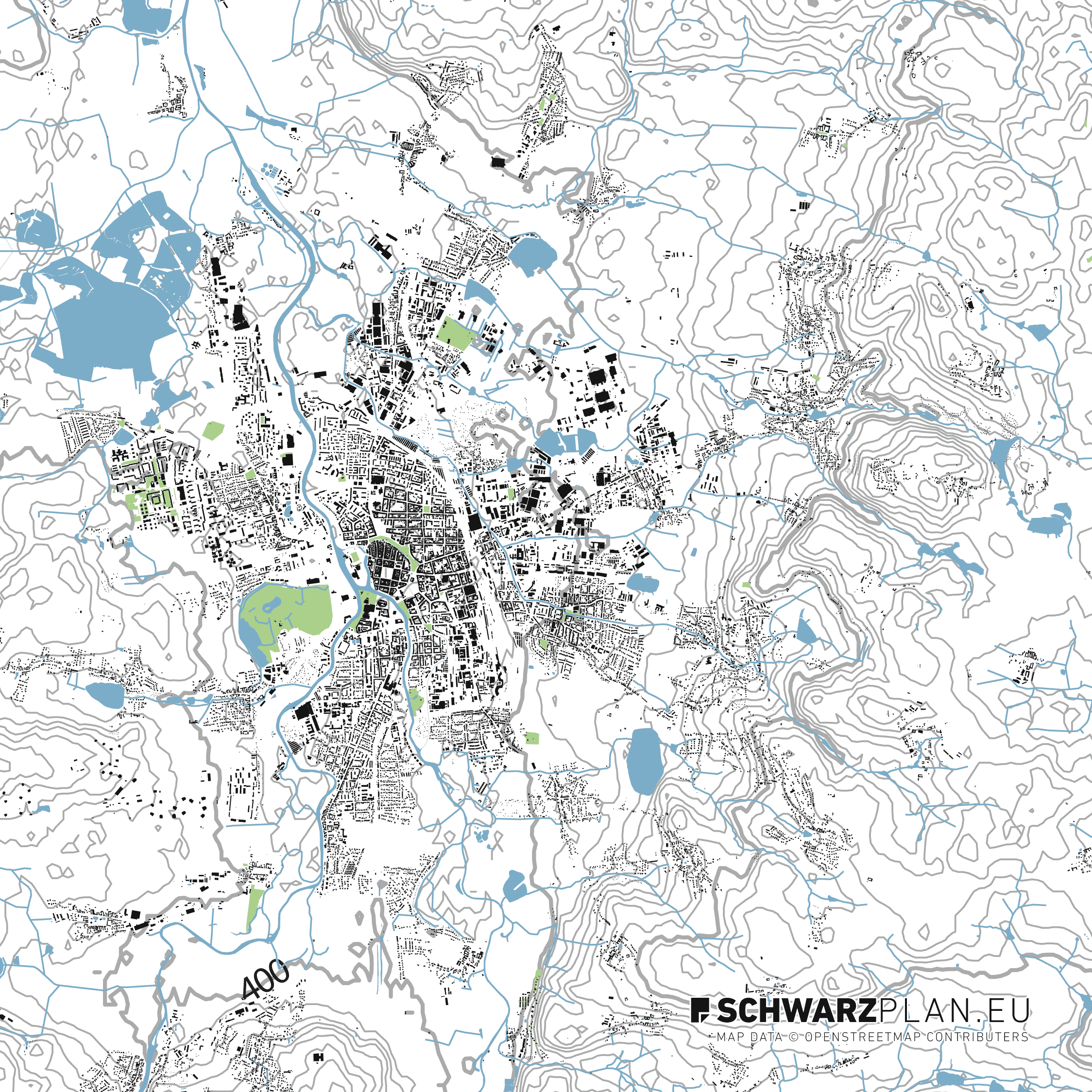

Site Plan of Budweis

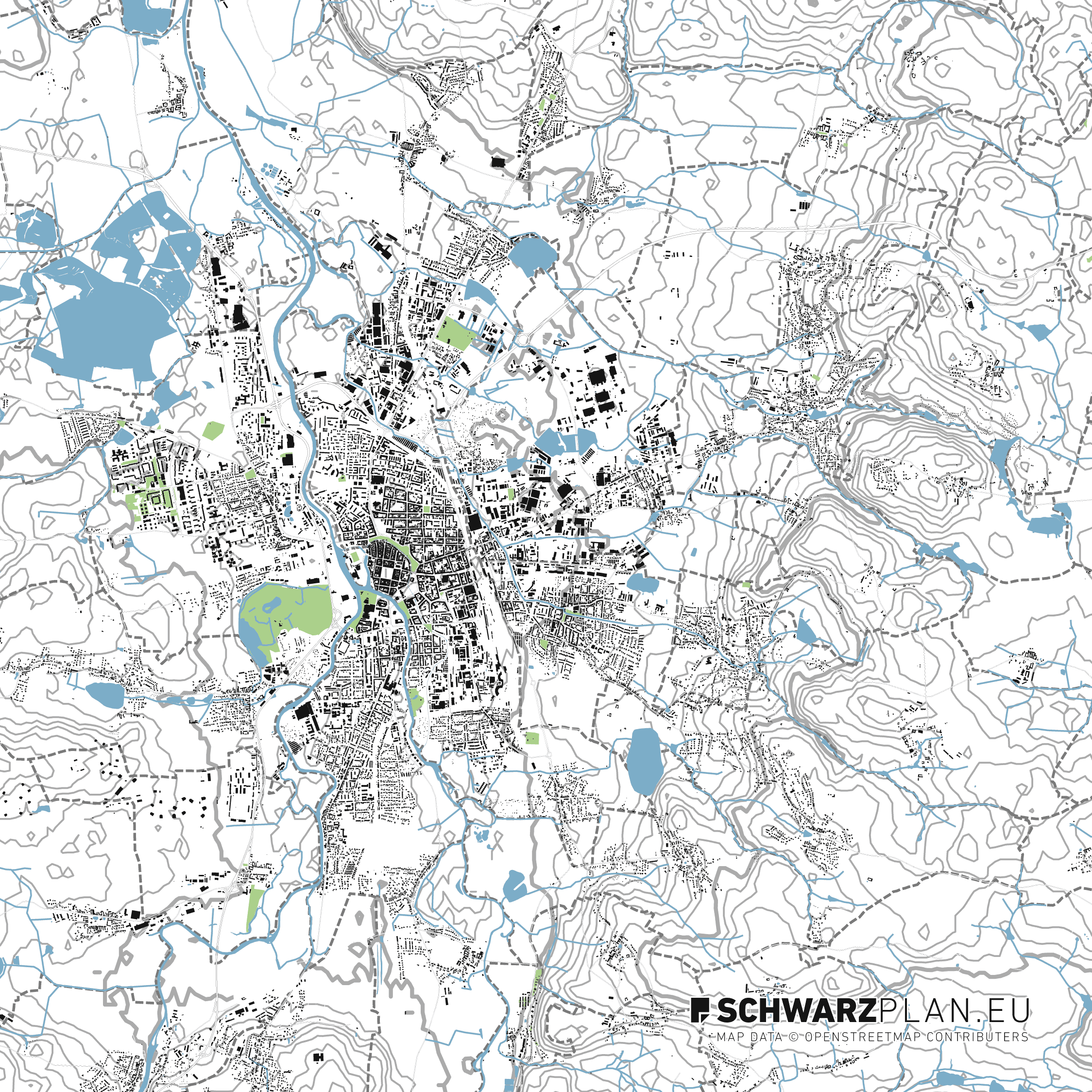

Site Plan of Budweis

10,00 €

incl. 19% VAT

Download the Site Plan & Figure Ground Plan of Budweis as PDF, DXF Plan in scale 1:100 000 now.

Get all our plans for 99 € with Access All Plans
Site Plan Details
Included
plan layers:		BuildingsWaterGreenStreetsBoundariesElevation lines
Containing
file formats:		PDFDXFLayers
Plan
features
  • Site plan layers in CAD plan + vector map
    Plan elements organized on different layers
  • CAD polygon map / Vector map
    Plans are scalable without loss in quality
  • Up to 4 different plan variations
  • Complete city area site plan
  • Unlimited access & Updates
    Erhalte alle zukünftigen Updates kostenlos
  • Free use for commercial and private projects
    Thanks to the OpenStreetMap database (License)
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Need Help? Contact Us Leave Feedback

Categories: , ,

Tags: , , , , , , ,

Layer Example for the Site Plan of Budweis

Just test the different layer combinations of the example plan, to see how the Site Plan layers of Budweis will look like.

Siteplan Layer - Buildings
Siteplan Layer - Water
Siteplan Layer - Parks & Green
Siteplan Layer - Streets
Siteplan Layer - Boundaries

Details on the Site Plan & Figure Ground Plan of Budweis for download as PDF, DXF Plan, 1:100 000

You will get the Site Plan & Figure Ground Plan of Budweis as scalable drawing in different variations and file formats. The Site Plan & Figure Ground Plan of Budweis for download as PDF, DXF Plan, 1:100 000 can be edited and resized without any loss of quality. Tools of choice are Adobe Illustrator, Inkscape or Corel Draw, but at least every software that can handle pdf files can be used to work with the Site Plan & Figure Ground Plan of Budweis.

CAD Site Plan & Figure Ground Plan of Budweis

The CAD map (dwg, dxf) of the Site Plan & Figure Ground Plan of Budweis for download as PDF, DXF Plan, 1:100 000 can be imported into CAD programs like AutoCAD, Rhinoceros 3D and ArchiCAD. The arrangement of the elements on different site plan layers makes it easy to hide or edit several elements. Site plan content such as buildings and streets are drawn as polygon areas, roads and borders as lines.
