Figure-Ground Plan & Site Plan of Amsterdam PDF · DXF

Instant digital download
Vector format (ZIP)
Scale 1:5000
10,00 € 30,00 € 15,00 € Includes tax · Free shipping

Choose license

Secure Checkout
Instant download
Invoice as PDF

Compatible with popular CAD and design software

Export: DWG · DXF · PDF · SVG · AI · EPS

City
Amsterdam
Scale
1:100 000
Formats
ZIP
Layers
Buildings, Boundaries, Green, Streets, Water
License
Architecture License · included
Details & License ▾

Standard · included

Architecture licence

  • ✓ Personal & academic use
  • ✓ Architecture projects (internal & for clients)
  • ✓ Visualisations, presentations, competition entries
  • — Print in books, reproduction, web publication

Commercial · +20,00 €

Extended licence

  • + Everything in Standard
  • + Print in books, magazines, print publications
  • + Web publication on public channels
  • + Unlimited reproduction & redistribution in publications

Note. Most architecture, academic, and internal projects are covered by the Standard licence — no upcharge needed. The Commercial licence is only required when the plan is printed or published in a publicly distributed publication.

Copyright © SCHWARZPLAN.eu. Data aggregated from OpenStreetMap and public geodatabases. Attribution is recommended but not required.

View licence terms →

Layers in the Amsterdam site plan

5 individually organised
Buildings
Polygons

Display of Buildings in Amsterdam

Boundaries
Polylines

Display of Boundaries in Amsterdam

Green
Polygons

Display of Green in Amsterdam

Streets
Polylines

Display of Streets in Amsterdam

Water
Polygons

Display of Water in Amsterdam

The Amsterdam site plan, layer by layer

Hover: merges the layers · Click: toggle layer

Sample extract Salzburg · 1 km²

  • Terrain L / 01
  • Water L / 02
  • Green spaces L / 03
  • Streets L / 04
  • Buildings L / 05

Geographic extent of Amsterdam

1:100 000 · 42,0 × 59,0 km

Cadastral map of Amsterdam

Niederlande

Explore the cadastral parcels and boundaries within the map extent of Amsterdam. For orientation only — not an official cadastral record.

Cadastral parcels
130,867
Typical size
124 m²

Counted within the city limits of Amsterdam.

Parcel data: © Kadaster (CC BY 4.0)

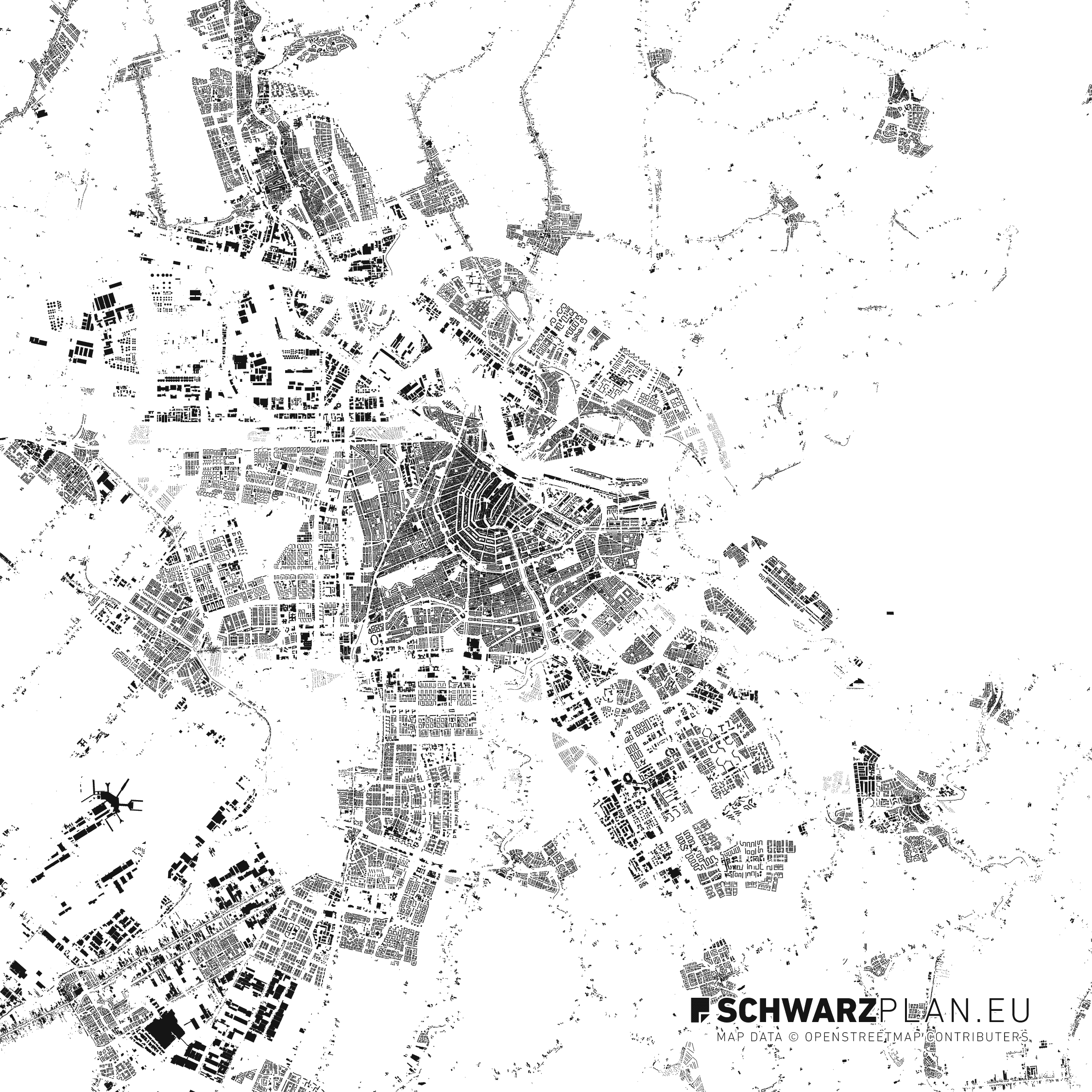

Figure-Ground Plan & Site Plan of Amsterdam

The black-and-white map of Amsterdam depicts the built city as a pure figure-ground representation—precise building footprints rendered as polygons, organized on a separate layer.

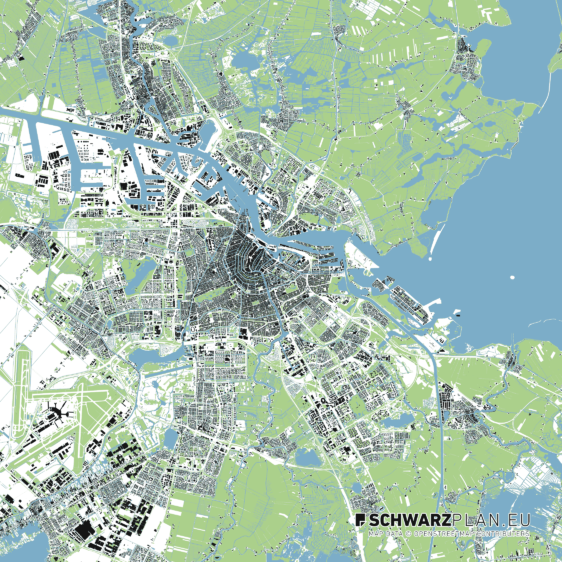

The site plan expands on the Amsterdam base map by adding a road network, waterways, green spaces, and topography—ready for use in architecture, urban planning, academic projects, and editorial cartography. Losslessly scalable and compatible with AutoCAD, Rhinoceros, ArchiCAD, and Adobe Illustrator.

Why Our Amsterdam Plan

  • Validated source data — each layer verified individually before release
  • Instant download after purchase — PDF for presentations, DWG for CAD work
  • Architecture licence with no project limits or recurring costs
  • Real-time updates and lossless scaling

All plans. One price.

One payment of 99 €, and you can download every plan in this shop under the architecture licence – for life. For practices with changing projects and students who design a lot. Extended (commercial) licence for all plans: +100 €.

Plans 219+
New Cities ~1/Jahr
License Architecture
Unlock All-Access 99 €

Why SCHWARZPLAN.eu

Since 2014
01 / Quality
Verified data

Every map is verified layer by layer prior to release. Source data comes from OSM and public geodatabases.

02 / Delivery
Available now

Download link available immediately after purchase. No waiting, no shipping.

03 / License
Architecture licence included

Architecture, urban-planning & academic projects plus internal visualization are covered. For print, web publication & editorial use, there's the Extended License.

04 / Support
Personal support

Questions about a plan, licence or delivery? We answer in German or English.
