Figure-Ground Plan & Site Plan of Vancouver DXF · PDF
Free Download
Just your email — no subscription needed. The download link appears right here on the page.
Download ready
Newsletter: 10% discount code + new free plans first.
- City
- Vancouver, Canada
- Scale
- 1:100 000
- Formats
- ZIP
- Layers
- Elevation lines, Water, Streets, Green, Boundaries, Buildings
- Coordinates
- [49.2827, -123.1207] · WGS 84
- License
- Architecture License · included
Details & License ▾
Rights of use. Unlimited commercial use in architectural, urban planning, and editorial projects. Distribution as a standalone file is prohibited; embedding in publications, visualizations, or planning documents is permitted.
Copyright © SCHWARZPLAN.eu. Data aggregated from OpenStreetMap and public geodatabases. Attribution is recommended but not required.
View licence terms →Layers in the Vancouver site plan
Display of Elevation lines in Vancouver
Display of Water in Vancouver
Display of Streets in Vancouver
Display of Green in Vancouver
Display of Boundaries in Vancouver
Display of Buildings in Vancouver
The Vancouver site plan, layer by layer
Sample extract Salzburg · 1 km²
- Terrain L / 01
- Water L / 02
- Green spaces L / 03
- Streets L / 04
- Buildings L / 05
Geographic extent of Vancouver
Figure-Ground Plan & Site Plan of Vancouver

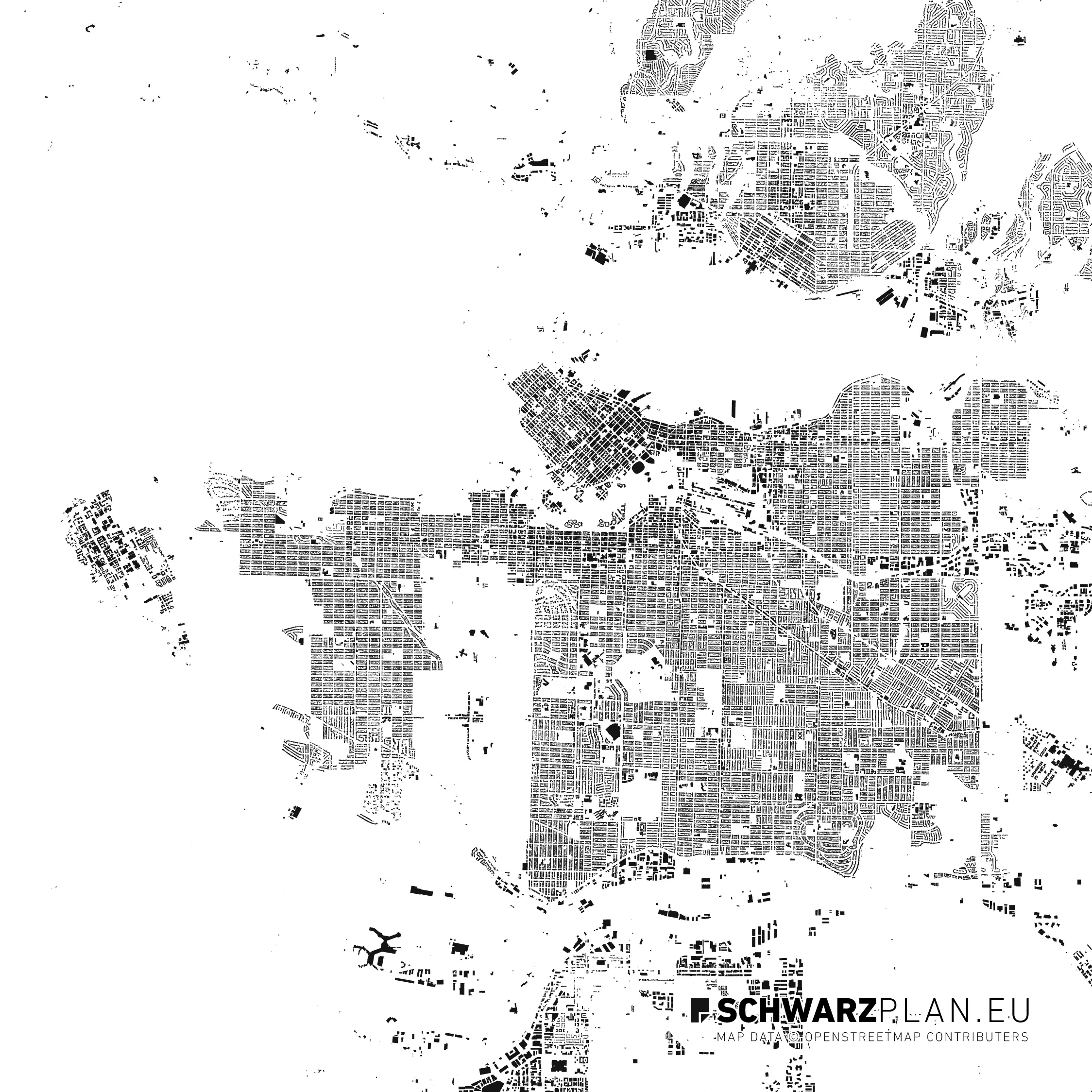

The black-and-white map of Vancouver depicts the built city as a pure figure-ground representation—precise building footprints rendered as polygons, organized on a separate layer.
The site plan expands on the Vancouver base map by adding a road network, waterways, green spaces, and topography—ready for use in architecture, urban planning, academic projects, and editorial cartography. Losslessly scalable and compatible with AutoCAD, Rhinoceros, ArchiCAD, and Adobe Illustrator.
Why Our Vancouver Plan
- Validated source data — each layer verified individually before release
- Instant download after purchase — PDF for presentations, DWG for CAD work
- Commercial license with no project limits or recurring costs
- Real-time updates and lossless scaling
All plans. One price.
One payment of 99 € per year, and you download every plan in this shop under the architecture licence. For practices with changing projects and students who design a lot. Extended (commercial) licence for all plans: +100 €.
